BSL-B Type Muffler
- Custom to drawing or sample
- Uniform pore distribution
- Export packing
Manufactured in Shanghai by BROLERN with matched in-house tooling. Ratings, materials and dimensions are listed in the specification below — other geometries are available on request.
Tel +86 135 2411 1326 · WhatsApp +86 135 2411 1326
BSL-B Type Muffler - part of the BROLERN industrial silencer line for pneumatic exhaust and throttling duties.
Threaded connection, sintered porous noise-reducing element. Main dimensions are listed below in millimetres; other thread sizes, materials and geometries are available on request.
Key specifications
| Product line | Industrial pneumatic silencers and exhaust muffler throttle valves |
|---|---|
| Noise-reducing element | Sintered porous insert |
| Connection | Threaded, M5 to 2 inch (BSL / V / SU / SC / PS / PSE / XY and related series) |
| Application | Exhaust noise control for pneumatic and hydraulic systems |
| Dimensions | Per-series dimension tables published on each model page |
| Customization | Custom production from customer drawing or sample; sample quantities for validation |

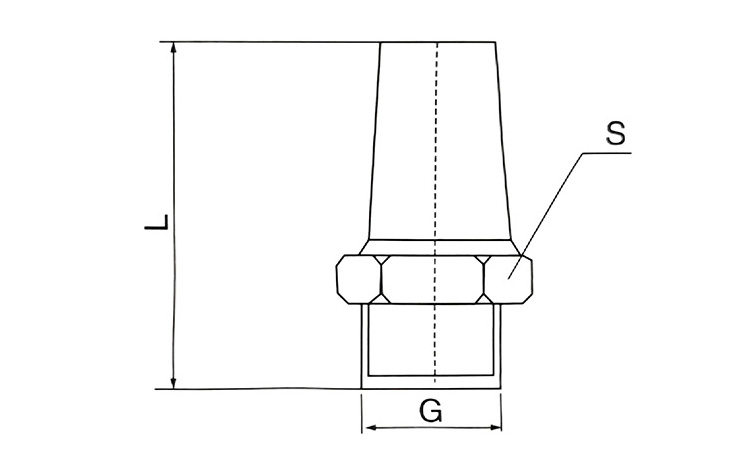

Dimensions
BSL-BMuffler BSL-B Type Series Muffler | ||
Model | Main dimensions/Dimension | |
L | S | |
M5″ | 19 | 8 |
1/8″ | 23 | 12 |
1/4″ | 27 | 15 |
3/8″ | 36 | 18 |
1/2″ | 40 | 21 |
3/4″ | 48 | 27 |
1″ | 62 | 34 |
1¹/4″ | 83 | 46 |
1¹/2″ | 92 | 53 |
2″ | 108 | 64 |
