XY Series Muffler
- Custom to drawing or sample
- Uniform pore distribution
- Export packing
Manufactured in Shanghai by BROLERN with matched in-house tooling. Ratings, materials and dimensions are listed in the specification below — other geometries are available on request.
Tel +86 135 2411 1326 · WhatsApp +86 135 2411 1326
XY Series Muffler - part of the BROLERN industrial silencer line for pneumatic exhaust and throttling duties.

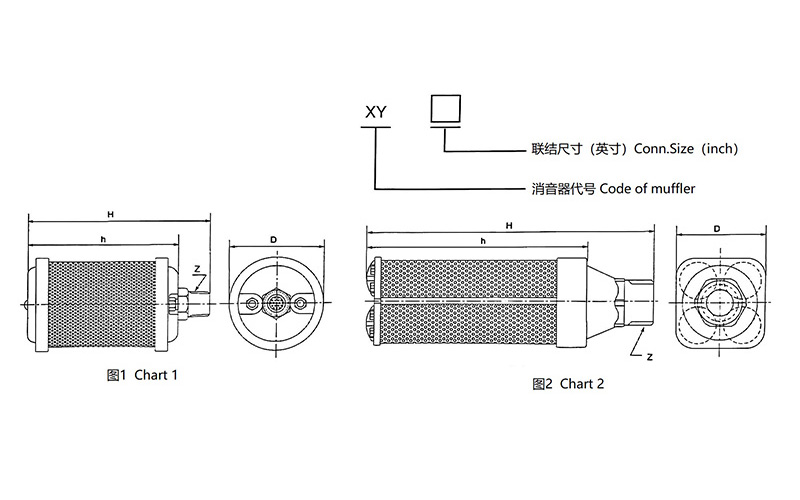

The XY series is a large-bore exhaust silencer line for valves from 1/2" to 6". Two outline charts cover the range; dimensions are in mm. Housing sizes and connection flanges can be adapted on request.
Key specifications
| Product line | Industrial pneumatic silencers and exhaust muffler throttle valves |
|---|---|
| Noise-reducing element | Sintered porous insert |
| Connection | Threaded, M5 to 2 inch (BSL / V / SU / SC / PS / PSE / XY and related series) |
| Application | Exhaust noise control for pneumatic and hydraulic systems |
| Dimensions | Per-series dimension tables published on each model page |
| Customization | Custom production from customer drawing or sample; sample quantities for validation |
Dimensions
XYtypeMuffler | |||||
Model | Main dimensions/Dimension | Diagram | |||
Z | H | h | D | ||
XY-05 | 1/2" | 159 | 125 | Φ80 | 图1 |
XY-07 | 3/4" | 180 | 156 | Φ87 | |
XY-10 | 1" | 218 | 183 | Φ99 | |
XY-12 | 1¹/4″ | 218 | 183 | Φ99 | |
XY-15 | 1¹/2″ | 340 | 297 | Φ133 | |
XY-20 | 2" | 470 | 432 | Φ133 | |
XY-30 | 3" | 588 | 467 | 173×173 | |
XY-60 | 6" | 790 | 619 | 275×275 | 图2 |
