BSL-SEB Type Muffler
- Custom to drawing or sample
- Uniform pore distribution
- Export packing
Manufactured in Shanghai by BROLERN with matched in-house tooling. Ratings, materials and dimensions are listed in the specification below — other geometries are available on request.
Tel +86 135 2411 1326 · WhatsApp +86 135 2411 1326
BSL-SEB Type Muffler - part of the BROLERN industrial silencer line for pneumatic exhaust and throttling duties.
Threaded connection, sintered porous noise-reducing element. Main dimensions are listed below in millimetres; other thread sizes, materials and geometries are available on request.
Key specifications
| Product line | Industrial pneumatic silencers and exhaust muffler throttle valves |
|---|---|
| Noise-reducing element | Sintered porous insert |
| Connection | Threaded, M5 to 2 inch (BSL / V / SU / SC / PS / PSE / XY and related series) |
| Application | Exhaust noise control for pneumatic and hydraulic systems |
| Dimensions | Per-series dimension tables published on each model page |
| Customization | Custom production from customer drawing or sample; sample quantities for validation |

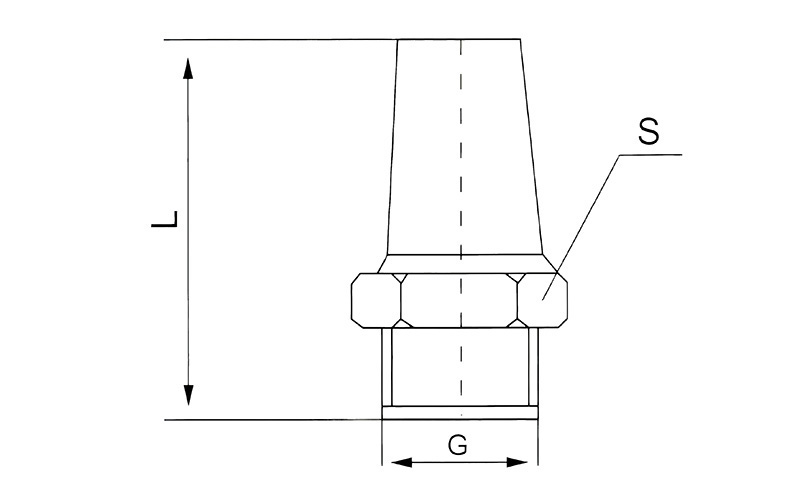

Dimensions
BSL-SEBtype Muffler | ||
Model | Main dimensions/Dimension | |
L | S | |
10-32cmF | 18 | 8 |
1/8″ | 22 | 11 |
1/4″ | 35 | 14 |
3/8″ | 38 | 17 |
1/2″ | 47 | 22 |
3/4″ | 57 | 27 |
1″ | 73 | 34 |
1¹/4″ | 83 | 43 |
1¹/2″ | 93 | 51 |
