D Type Muffler
- Custom to drawing or sample
- Uniform pore distribution
- Export packing
Manufactured in Shanghai by BROLERN with matched in-house tooling. Ratings, materials and dimensions are listed in the specification below — other geometries are available on request.
Tel +86 135 2411 1326 · WhatsApp +86 135 2411 1326
D Type Muffler - part of the BROLERN industrial silencer line for pneumatic exhaust and throttling duties.
Threaded connection, sintered porous noise-reducing element. Main dimensions are listed below in millimetres; other thread sizes, materials and geometries are available on request.
Key specifications
| Product line | Industrial pneumatic silencers and exhaust muffler throttle valves |
|---|---|
| Noise-reducing element | Sintered porous insert |
| Connection | Threaded, M5 to 2 inch (BSL / V / SU / SC / PS / PSE / XY and related series) |
| Application | Exhaust noise control for pneumatic and hydraulic systems |
| Dimensions | Per-series dimension tables published on each model page |
| Customization | Custom production from customer drawing or sample; sample quantities for validation |

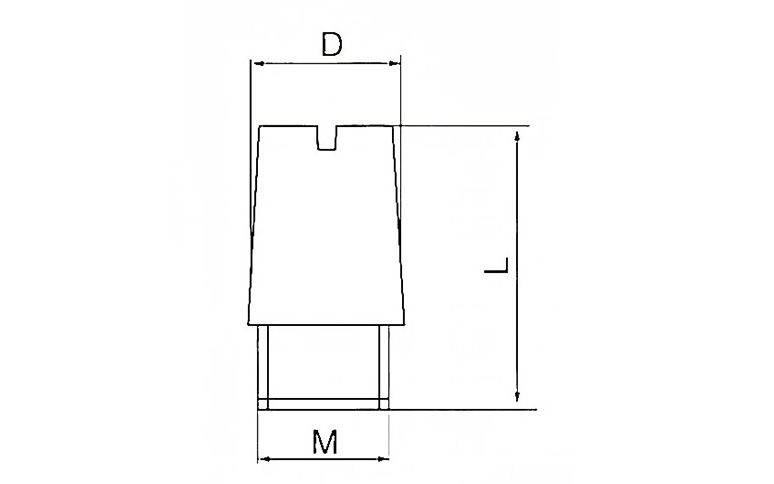

Dimensions
Dtype Muffler D Type Series Muffler | ||
Model | Main dimensions/Dimension | |
D | L | |
1/8″ | 11 | 22 |
1/4″ | 13 | 25 |
3/8″ | 18.5 | 36.5 |
1/2″ | 22.5 | 43.5 |
3/4″ | 27.5 | 52 |
1″ | 34.5 | 56 |
