PST Type Muffler
- Custom to drawing or sample
- Uniform pore distribution
- Export packing
Manufactured in Shanghai by BROLERN with matched in-house tooling. Ratings, materials and dimensions are listed in the specification below — other geometries are available on request.
Tel +86 135 2411 1326 · WhatsApp +86 135 2411 1326
PST Type Muffler - part of the BROLERN industrial silencer line for pneumatic exhaust and throttling duties.
Threaded connection, sintered porous noise-reducing element. Main dimensions are listed below in millimetres; other thread sizes, materials and geometries are available on request.
Key specifications
| Product line | Industrial pneumatic silencers and exhaust muffler throttle valves |
|---|---|
| Noise-reducing element | Sintered porous insert |
| Connection | Threaded, M5 to 2 inch (BSL / V / SU / SC / PS / PSE / XY and related series) |
| Application | Exhaust noise control for pneumatic and hydraulic systems |
| Dimensions | Per-series dimension tables published on each model page |
| Customization | Custom production from customer drawing or sample; sample quantities for validation |

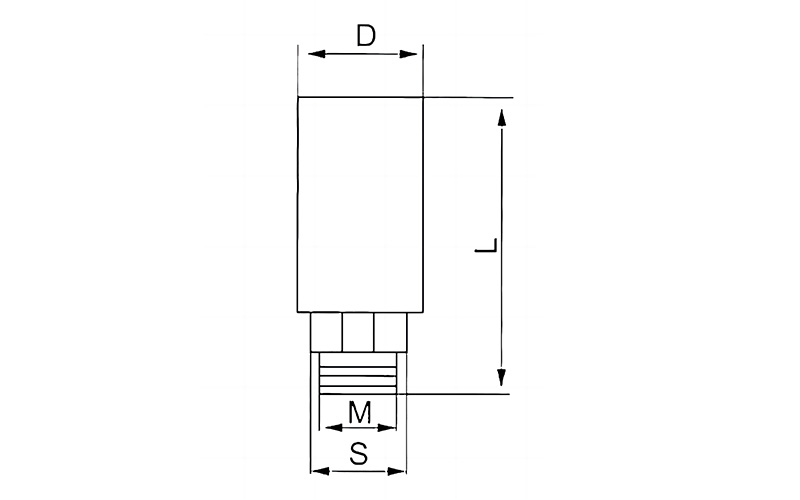

Dimensions
PSTtypeMuffler | |||
Model | Main dimensions/Dimension | ||
L | S | D | |
1/8″ | 39 | 11.5 | 12 |
1/4″ | 65 | 17 | 21 |
3/8″ | 84.5 | 24.5 | 21 |
1/2″ | 93 | 26 | 30 |
